Introduction to Phadia 1000

These products may not be cleared for use in your country. Please contact your sales representative for information about specific product availability.

Made to focus on ImmunoCAP^TM tests

If your lab needs to deliver high volumes of ImmunoCAP test results efficiently, the Phadia™ 1000 instrument is made for you.

Your first results are available in 100 minutes, followed by one every 15 seconds. Given the instrument’s full random access, reagent redundancy, and large refrigerated storage compartments, you can load patient samples and reagents continuously to keep the results coming without disruptions.

Maximizing performance doesn’t mean losing flexibility. On a single Phadia 1000 instrument, you can run any combination of the full range of clinically relevant allergens, allergen components, and antigens in the ImmunoCAP test portfolio.

When your laboratory needs to run high volumes of tests to aid in the diagnosis of allergic diseases quickly, the Phadia 1000 instrument delivers results as you need them.

Phadia 1000 instrument. Made to focus.

Check out the features that make the Phadia 1000 instrument right for your laboratory

Instrument Details

Back

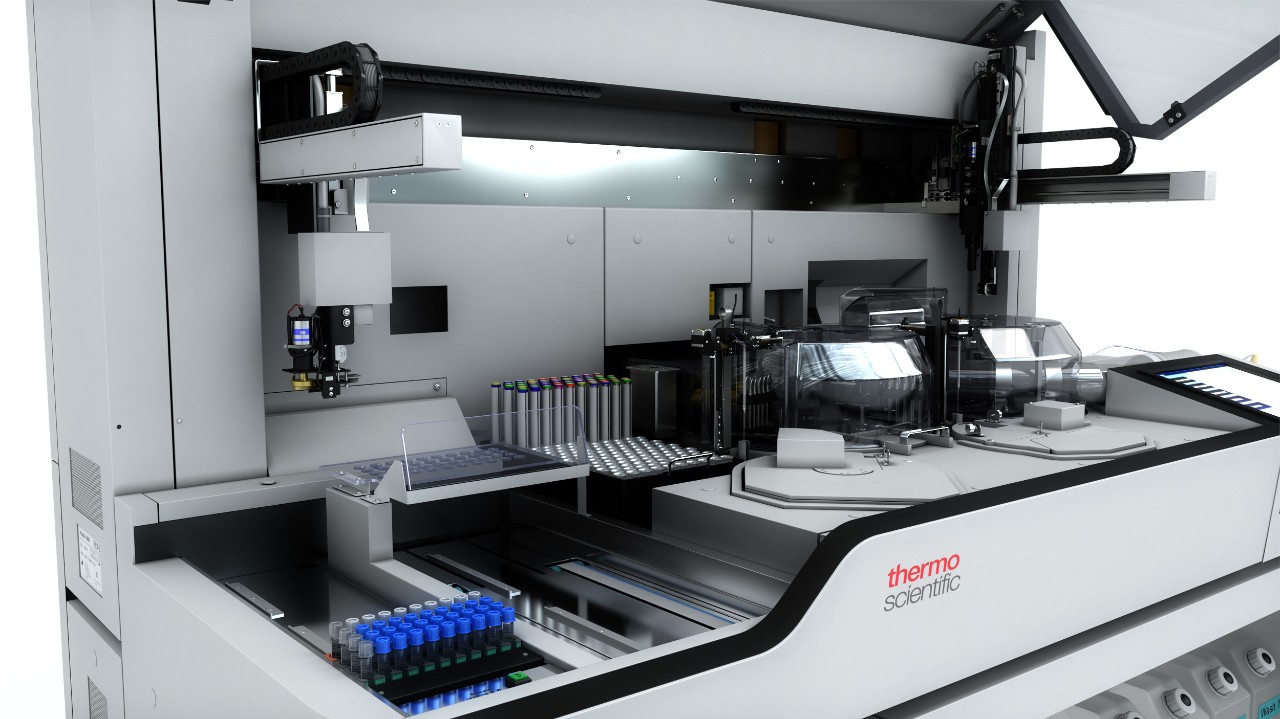

Sample loading area

High-capacity sample loading area and continuous sample loading without interruptions to allow operator flexibility.

QC positions and ImmunoCAP carrier storage

Run three methods in parallel with dedicated quality controls, enabling more than 300 different tests to be performed in one assay run with all reagents on board.

ImmunoCAP carrier storage

Ensures all necessary tests are onboard to avoid interruptions during operation.

Conjugate storage compartment

Assay runs with three different methods in parallel (e.g., tIgE, sIgE, and tryptase) for up to 3,200 tests.

Development solution compartment

Hold enough development solution onboard for 2,400 to 4,400 test doses.

Processing chambers are the core engine of Phadia Laboratory Systems

Climate-controlled reaction chambers enable access to the gold standard in allergy testing and IgE sensibilization tests in allergy diagnostics.

Canister storage shelf and fixed pipe/drain connections

Efficient and ergonomic fluid-handling options, adaptable to the laboratory’s infrastructure and workflow needs.

Barcode scanning of sample racks, samples, and ImmunoCAP carriers and reagents

Full traceability to ensure patient safety and minimize risk of manual errors.

System operation

Less than 15 minutes of operator time is needed to set up the system and start the run to produce up to 240 test results per hour.

Instrument touchscreen, Phadia Prime Software, and status indicator light

Ease of use for the operator.

Stop solution compartment

Hold enough stop solution onboard for 2,400 determinations.

Phadia 1000 testing instrument left view

Phadia 1000 testing instrument right view

Productivity

Throughput up to 240 results/hour.
Continuous random access.
Refrigerated on-board reagent storage and 28-day stored calibration curve.
Connectable to Laboratory Automation Systems (LAS).*
Network multiple Phadia™ instruments for clustered** setup for efficient handling.

Flexibility

Large allergen test menu covering more than 500 whole allergens and mixes and 100 allergen components.
Automatic start-up and shut-down functionality.
User-configurable reflex testing functionality.
LIS connectivity via Phadia™ Prime software.

Reliability

Excellent consistency over time and between countries, systems, laboratories, and users.
Support and troubleshooting enhanced by the secure Phadia LabCommunity connectivity.
Quality Club: One of the largest global quality assessment programs.

*Contact your local Thermo Fisher Scientific representative for available LAS connectivity.

**Cluster setup allows several Phadia instruments networked together to be operated with one Phadia Prime computer.

	Phadia 200	Phadia 250	Phadia 1000	Phadia 2500+ series	Phadia 5000+ series
ImmunoCAP	Allergy	Allergy	Allergy	Allergy	Allergy
EliA	Autoimmunity	Autoimmunity	N/A	Autoimmunity	Autoimmunity
System Description	Fully-automated closed immunoassay system	Fully-automated closed immunoassay system	Fully-automated closed immunoassay system	Fully-automated closed immunoassay system	Fully-automated closed immunoassay system
Processing	Batch	Continuous	Continuous	Continuous	Continuous
Maximum Throughput	Up to 96 test results per batch	Up to 60 results/hour	Up to 240 results/hour	Up to 480 results/hour	Up to 960 results/hour
Sample Types	Serum, Plasma	Serum, plasma	Serum, plasma	Serum, plasma	Serum, plasma
Sample Tubes for Sample Rack w/ 10 positions	Height 42-100mm Diam. 10-16mm	Height 50-110mm Diam. 10-17mm	Height 50-105mm Diam. 10-17mm	N/A	N/A
Sample Tubes for Sample Rack w/ 5 positions	N/A	N/A	N/A	Height 70-105mm Diam. 10-17mm	Height 70-105mm Diam. 10-17mm
Sample Barcode Types	Code 39, Code 93, Code 128, Codabar (NW-7), COOP 2 of 5, EAN-8, Industrial 2 of 5, Interleave 2–5 *Not for Phadia 200 and Phadia 1000 Use. Phadia 200 not Validated with EAN-8 either	Code 39, Code 93, Code 128, Codabar (NW-7), COOP 2 of 5, EAN-8, Industrial 2 of 5, Interleave 2–5 *Not for Phadia 200 and Phadia 1000 Use. Phadia 200 not Validated with EAN-8 either	Code 39, Code 93, Code 128, Codabar (NW-7), COOP 2 of 5, EAN-8, Industrial 2 of 5, Interleave 2–5 *Not for Phadia 200 and Phadia 1000 Use. Phadia 200 not Validated with EAN-8 either	Code 39, Code 93, Code 128, Codabar (NW-7), COOP 2 of 5, EAN-8, Industrial 2 of 5, Interleave 2–5 *Not for Phadia 200 and Phadia 1000 Use. Phadia 200 not Validated with EAN-8 either	Code 39, Code 93, Code 128, Codabar (NW-7), COOP 2 of 5, EAN-8, Industrial 2 of 5, Interleave 2–5 *Not for Phadia 200 and Phadia 1000 Use. Phadia 200 not Validated with EAN-8 either
Sample Dilution	Allergy Autoimmunity	Allergy Autoimmunity	N/A	Autoimmunity	Autoimmunity
Level and Clot Detection	Yes	Yes	Yes	Yes	Yes
Reflex Testing	Yes	Yes	Yes	Yes	Yes
STAT Samples	No	Yes	No	Yes	Yes
Reagents	General ImmunoCAP and EliA reagents available on board. Loaded batch wise with ImmunoCAP or EliA reagents	General ImmunoCAP and EliA reagents available on board are shared	General ImmunoCAP and EliA reagents available on board are shared	General ImmunoCAP and EliA reagents available on board are shared	General ImmunoCAP and EliA reagents available on board are shared
Type of calibration	One Isotype master curve per assay group (IgG, IgE, IgM, IgA)	One Isotype master curve per assay group (IgG, IgE, IgM, IgA)	One Isotype master curve per assay group (IgG, IgE, IgM, IgA)	One Isotype master curve per assay group (IgG, IgE, IgM, IgA)	One Isotype master curve per assay group (IgG, IgE, IgM, IgA)
Calibration stability	28 days	28 days	28 days	28 days	28 days
Water Requirements for Rinse Solution	Clinical laboratory reagent water (CLRW, may be used in place of Type I and Type II water)*	Clinical laboratory reagent water (CLRW, may be used in place of Type I and Type II water)*	Clinical laboratory reagent water (CLRW, may be used in place of Type I and Type II water)*	Clinical laboratory reagent water (CLRW, may be used in place of Type I and Type II water)*	Clinical laboratory reagent water (CLRW, may be used in place of Type I and Type II water)*
Remote Troubleshooting and Support	Phadia LabCommunity	Phadia LabCommunity	Phadia LabCommunity	Phadia LabCommunity	Phadia LabCommunity
Ambient Operating Temperature	18–32 °C	18–32 °C	18–32 °C	ImmunoCap 18–32 °C EliA 18-29 °C	ImmunoCap 18–32 °C EliA 18-29 °C
Electrical Requirements	110-240V 50/60Hz	100 V, 120 V, 220 V, 230 V, 240 V ±10% 50/60 Hz	200 V, 220 V, 230 V, 240 V±10% 50/60 Hz	200 V, 208 V, 230 V, 240 V±10% 50/60 Hz	200 V, 208 V, 230 V, 240 V±10% 50/60 Hz
Dimensions (HxWxD)	55 x 80 x 60 cm (22 x 32 x 24 in)	186x127x75 cm w/ table 73x50x30 in	215x183x105 cm 85x72x42 in	195x411x135 cm 77x162x53 in	195x619x135 cm 77x244x53 in
Weight (empty)	47 kg/ 104 lb.	220 kg / 485 lb	688 kg / 1516 lb	2000 kg / 4409 lb	3342 kg / 7367 lb
