Phadia 1000 Instrument

PHADIA^TM 1000 Instrument for Testing for Allergen Sensitization

Designed to aid in the diagnosis of allergic diseases by providing test results with clinical relevance in a large, cost conscious laboratory

Part of the family of Phadia^TM Laboratory Systems, the Phadia 1000 instrument is a dedicated ImmunoCAP^TM assay system for the detection of over 600 specific allergic sensitizations. It is capable of storing large volumes of reagents and ImmunoCAP^TM carriers on board.

The Phadia 1000 instrument allows laboratories with high volumes of allergen sensitization testing to produce consistent and reproducible results.

ImmunoCAP assays >

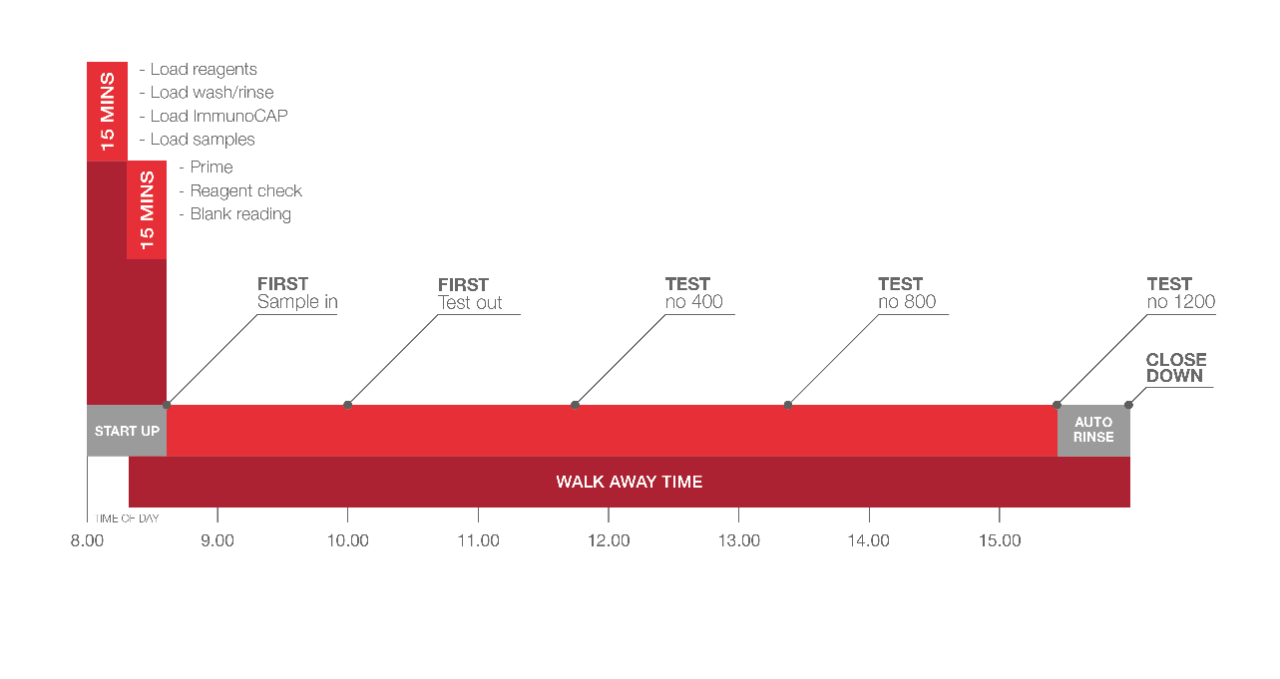

Ideal for high throughput laboratories that deliver 2,000–10,000 tests per week

Phadia 1000 instrument delivers a range of benefits, all with a size and capability that make sense for your laboratory:

Flexibility

Allergen panel detecting sensitizations to 600 allergens and 100 allergen components
Automatic start-up and shut-down function
User-configurable reflex testing functionality

Capacity

Throughput:
240 results/hour
Continuous random access
All reagents stored on board
28-day storage of calibration curves
Connectable to Laboratory Automation Systems
Clustered set-up for increased capacity

Reliability

Excellent consistency over time and between countries, systems, laboratories and users
Remote diagnostics via Phadia^TM LabCommunity
One of the largest quality assessment programs in the world

Phadia 1000 Instrument Features

20 sample racks (10 positions per rack) for loading patient samples and quality control samples
Loading tray (162 positions) with automatic bar code reading of ImmunoCAP carriers
Reagent pipette tray (8 positions) for loading ImmunoCAP carriers during assay run
Protective cover to prevent interruptions during assay runs
Conjugate compartment for 8 vials, with automatic barcode reader, is temperature controlled
Development solution compartment (2 bottles) is temperature-controlled
LCD, logical and intuitive instrument management
Integrated storage for wash and rinse solution, as well as solid and liquid waste containers
ImmunoCAP test storage area (600 positions) is temperature-controlled and ensures stability and reagent quality until expiry date
Barcode reader for complete traceability of reagent lot number
Shelf protection to simplify handling and cleaning

Not shown in picture:

Integrated loading area for stop solution bottles and container for used carriers
Stand-alone PC for Phadia™ Prime software, connectable to mainframe Laboratory Information Systems (LIS)

Download Phadia 1000 instrument specs

Phadia 1000 Instrument Capability
