Phadia 5000 Instrument

PHADIA^TM 5000 Instrument

Sophisticated and powerful to meet the demands of any major laboratory

Phadia 5000 instrument provides the highest throughput amongst the Phadia^TM Laboratory Systems family. With four parallel process lines, it doubles the capacity of Phadia 2500 instrument and provides even greater flexibility. There are three configurations of Phadia 5000 instrument that reflect your assay needs; ImmunoCAP^TM only, EliA^TM only, or a combination of ImmunoCAP and EliA. This offers your laboratory the ability to tailor a high-throughput automated solution that aligns with your assay demand and schedule.

Ideal for extremely high throughput laboratories that deliver 25,000–45,000 results per week

The Phadia 5000 instrument delivers a range of benefits, all with the capability and functionality that makes sense for your laboratory:

Flexibility

Allergen panel detecting sensitizations to 600 allergens and 100 allergen components
Broad autoimmunity menu covering clinically relevant autoimmunity markers for evaluation of over 50 of the most common autoimmune disease markers
User-configurable reflex testing functionality

Capacity

Capacity per process line: 240 results/hour (ImmunoCAPTM)
Capacity per process line: 150 results/hour (EliATM)
Continuous random access
All reagents stored on board
28-day storage of calibration curves
Onboard dilution (EliA)
Clustered set-up for increased capacity

Reliability

Excellent consistency over time and between countries, systems, laboratories and users
Remote diagnostics via Phadia^TM LabCommunity
One of the largest quality assessment programs in the world

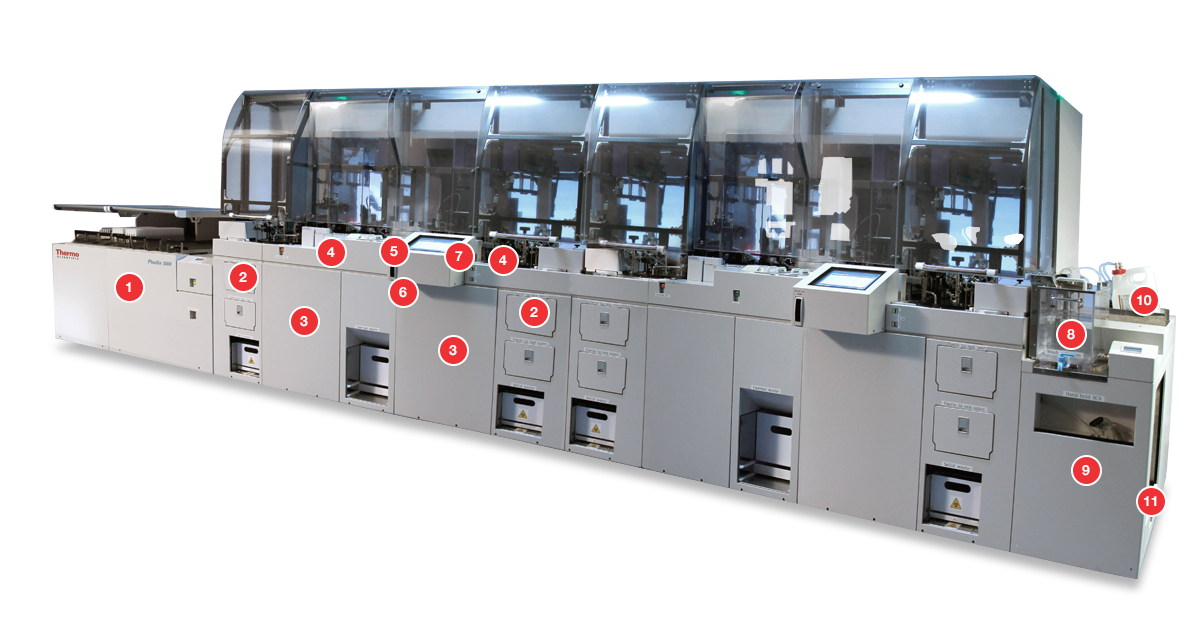

Phadia 5000 Instrument Features

Rack input/output module (160 racks) — Loading area for patient samples, quality controls, ImmunoCAP^TM and EliA^TM wells, calibrators/curve controls
Pipette tip rack input
Cooled ImmunoCAP and EliA well carrier storage (1800 positions)
Development storage (2 x 2 positions)
Cooled conjugate positions (32 positions) automatic barcode reading
Barcode reader for traceability of reagent lot number
LCD for instrument management software
Wash tank, automatic refill function
Handheld barcode reader for traceability of reagent lot number
Stop solution position (2 positions)
Washing solution concentrate and washing solution additive bottles

Not shown in picture:

Fixed pipe connections for purified water and drain
Stand-alone PC for Phadia^TM Prime software, connectable to mainframe Laboratory Information Systems (LIS)

Phadia 5000 Instrument Capability

Are you ready to offer four process lines and even greater flexibility?

If your laboratory has been considering upgrading or adding to your testing system, Thermo Fisher Scientific can help you find the right Phadia Laboratory System for your needs.
